Technical Specifications
FRAMESET

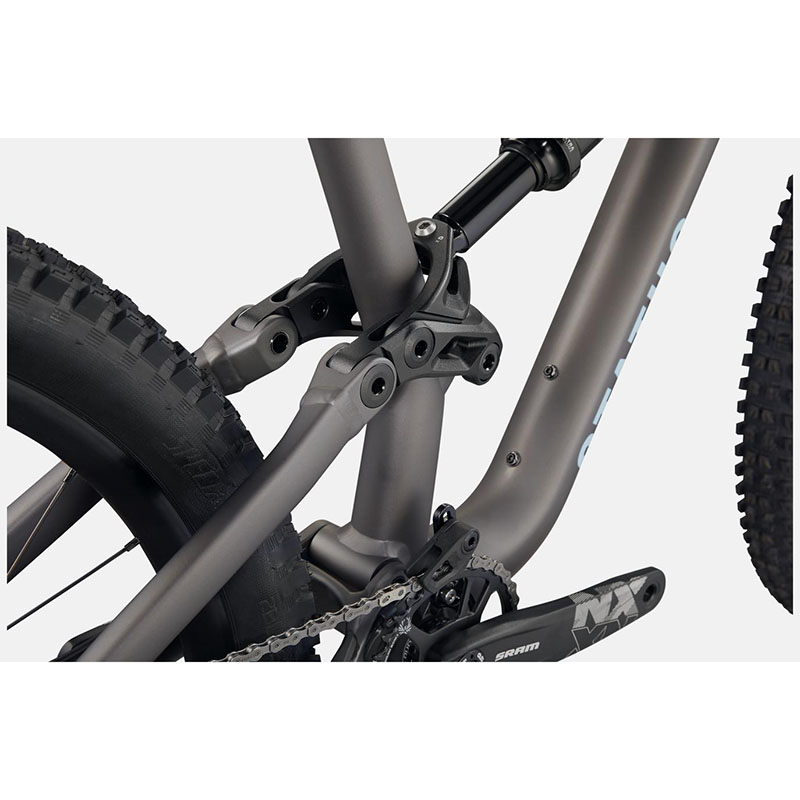

Frame: M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm of travel
Seat Binder: Alloy, 38.6mm
Suspension
Rear Shock: FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm
Fork: FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel
COCKPIT
Stem: Alloy Trail Stem, 35mm bar bore
Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width
Grips: Deity, Knuckleduster, Black
Saddle: Body Geometry Bridge Comp, hollow Cr-Mo rails, 143mm
SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9mm, S1:125, S2: 150mm, S3/S4/S5: 170mm
BRAKES
Front Brake: SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Rear Brake: SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
Rear Derailleur: SRAM NX Eagle, 12-speed
Shift Levers: SRAM NX Eagle, trigger, 12-speed
Cassette: SRAM NX Eagle, 12-speed, 11-50t
Chain: SRAM NX Eagle, 12-speed
Crankset: SRAM NX Eagle, DUB, 170mm
Chainrings: 32T
Bottom Bracket: SRAM DUB, BSA 73mm, Threaded
WHEELS
Rims: Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
Spokes: DT Swiss Industry
Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29×2.3″
Rear Tire: Butcher, GRID TRAIL casing, GRIPTON® compound, 27.5×2.3″
Inner Tubes: Standard, Presta Valve
Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S1 | S2 | S3 | S4 | S5 | |
|---|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm | 170mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 40mm | 40mm | 40mm | 40mm | 40mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 150mm | 170mm | 170mm | 170mm |
| Stack (low BB) | 610mm | 614mm | 623mm | 632mm | 641mm |
| Reach (low BB) | 417mm | 437mm | 462mm | 487mm | 512mm |
| Head-Tube Length | 95mm | 100mm | 110mm | 120mm | 130mm |
| Head-Tube Angle (low BB) | 63.2° | 63.2° | 63.2° | 63.2° | 63.2° |
| Head-Tube Angle | 63.7° | 63.7° | 63.7° | 63.7° | 63.7° |
| B-B Height (low BB) | 338mm | 338mm | 338mm | 338mm | 338mm |
| B-B Height | 347mm | 347mm | 347mm | 347mm | 347mm |
| B-B Drop (low BB) | 17.5mm | 17.5mm | 17.5mm | 17.5mm | 17.5mm |
| B-B Drop | 8.5mm | 8.5mm | 8.5mm | 8.5mm | 8.5mm |
| Trail (low BB) | 141mm | 141mm | 141mm | 141mm | 141mm |
| Fork Length (full) | 567mm | 567mm | 567mm | 567mm | 567mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front-Center (low BB) | 756mm | 778mm | 808mm | 837mm | 867mm |
| Chain-Stay Length | 426mm | 426mm | 426mm | 426mm | 426mm |
| Wheelbase | 1181mm | 1203mm | 1233mm | 1264mm | 1292mm |
| Seat-Tube Length | 400mm | 400mm | 420mm | 440mm | 465mm |
| Seat-Tube Angle | 76° | 76° | 76° | 76° | 76° |
