Specs
Frameset
Frame: with Fork 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew
Fork: Carbon, hidden fender mounts, flat mount disc, 5x100mm thru-skew
Weight
Weight: M – 9.47 kg / 20.88 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Drivetrain
Shifter: Shimano RS700, 11 speed
Rear derailleur: Shimano GRX RX812, long cage, 42T max cog
Shimano GRX RX600, 40T ring, 170mm length
Size: M, L, XL
Shimano GRX RX600, 40T ring, 175mm length
Bottom bracket Shimano RS500, 86mm, PressFit
Cassette: Shimano SLX M7000, 11-42, 11 speed
Chain: Shimano HG601, 11 speed
Pedal: Bontrager City pedals
Max chainring size 1x: 44T
Wheels

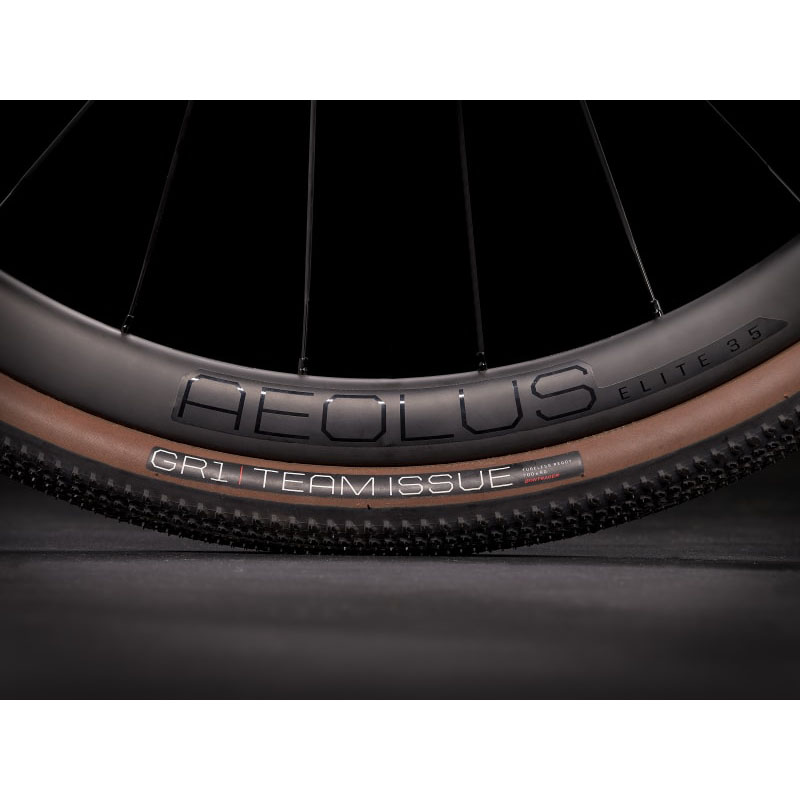

Wheel front: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 100x5mm QR
Wheel rear: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, Shimano 11-speed freehub, 135x5mm
skewer
Skewer front: 135x5mm bolt-on
Skewer rear: 169x5mm bolt-on
Tire: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
Max tire size: 700x42mm without fenders, 700x40mm with fenders
Components

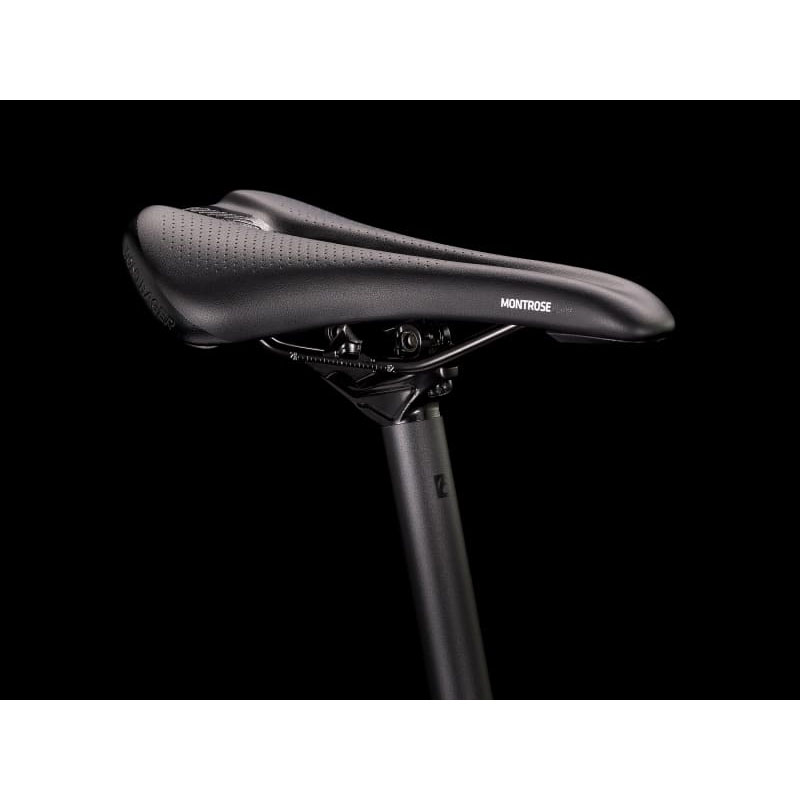

Saddle: Bontrager Montrose Comp, steel rails, 138mm width
Seatpost: Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width
Size: L, XL
Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 660mm width

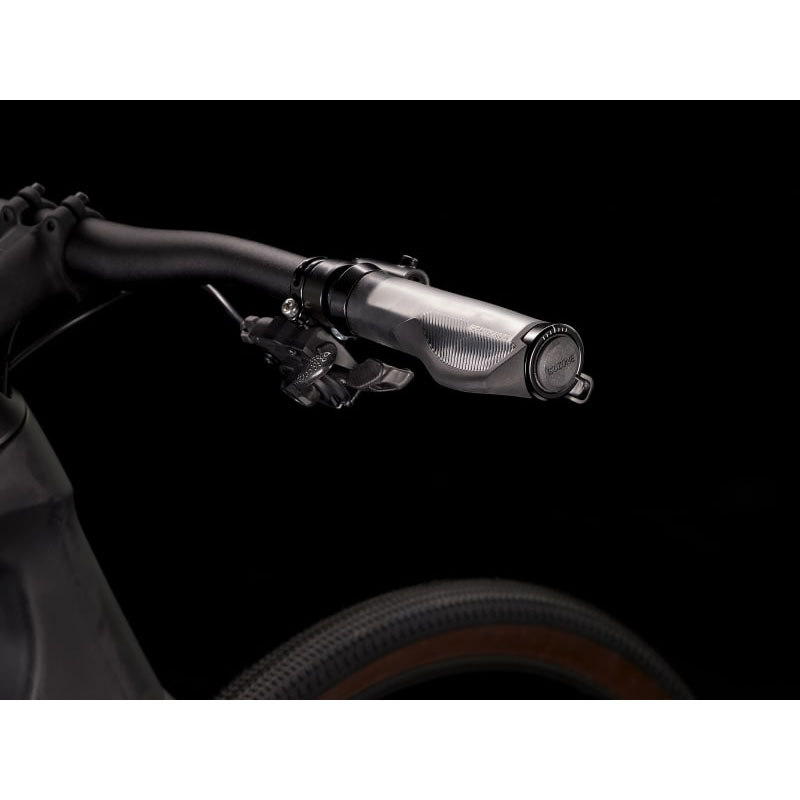

Grips Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: S, M
Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length
Size: L, XL
Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length
Brake Shimano hydraulic disc, MT201 lever, UR300 caliper
Brake rotor: Shimano RT10, centerlock, 160mm
Rotor size: Max brake rotor sizes: 160mm front & rear
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
