Technical Specifications
FRAMESET

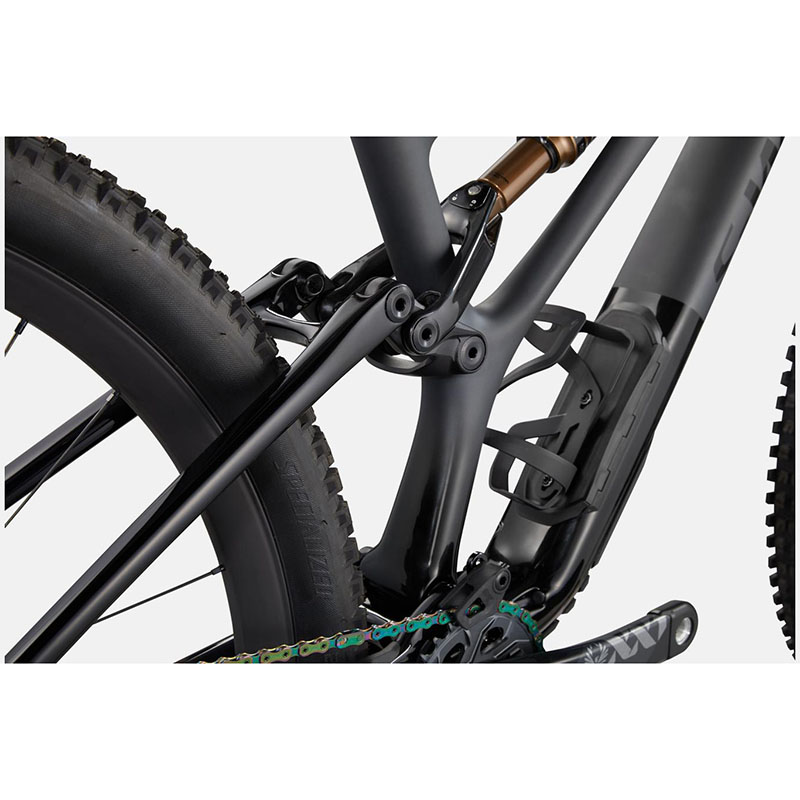

Frame: FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Seat Binder: Alloy, 38.6mm
Suspension
Rear Shock: FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm
Fork: FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel

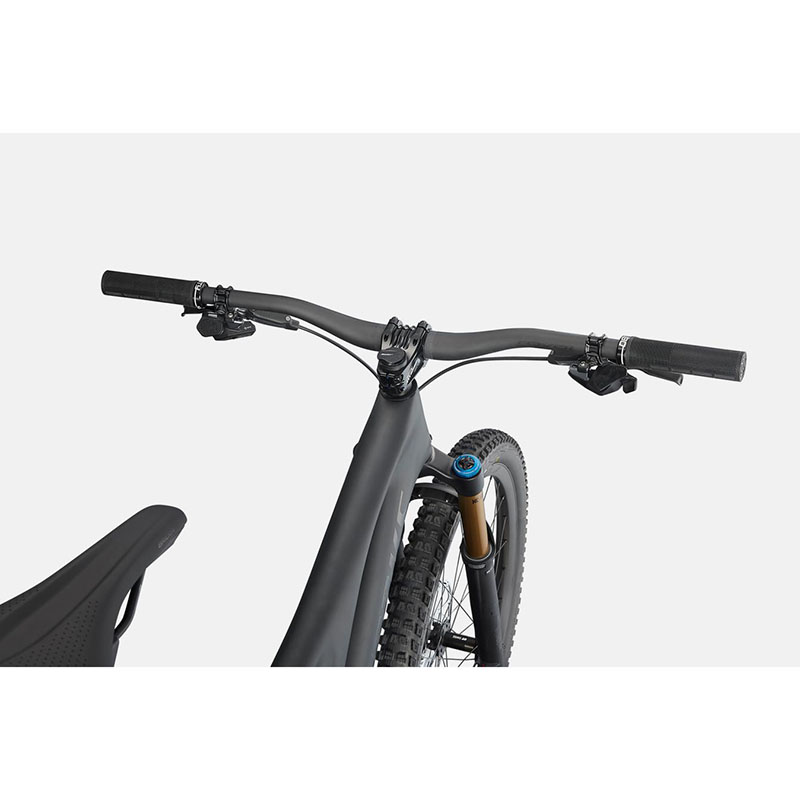

COCKPIT
Stem: Deity, 35.0mm Bore (S1-S2: 35mm length, S3-S6: 50mm length)
Handlebars: Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips: Deity, Knuckleduster, Black
Saddle: Bridge, 155/143mm, Hollow Ti-rails
SeatPost: RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
BRAKES
Front Brake: SRAM G2 Ultimate, 4-piston caliper, hydraulic disc, 200mm
Rear Brake: SRAM G2 Ultimate, 4-piston caliper, hydraulic disc, 180mm
DRIVETRAIN
Rear Derailleur: SRAM XX1 Eagle AXS
Shift Levers: SRAM Eagle AXS Rocker Paddle
Cassette: Sram XG-1299, 12-Speed, 10-52t
Chain: SRAM XX1 Eagle
Crankset: SRAM XX1 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
Chainrings: Alloy, 30T
Bottom Bracket: SRAM DUB, BSA 73mm, Threaded
WHEELS
Rims: Roval Control 240, hookless carbon, 29mm inner width, hand-built, 2Bliss Ready
Front Hub: DT Swiss 240, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub: DT Swiss 240, Ratchet EXP, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes
DT Swiss Competition Race
Front Tire
Butcher, GRID casing, GRIPTON® T9 compound, 29×2.3″
Rear Tire
Purgatory, GRID casing, GRIPTON® T7 compound, 29×2.3″
Inner Tubes
Standard, Presta Valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm | 170mm | 170mm | 175mm |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
| Stem Length | 35mm | 35mm | 50mm | 50mm | 50mm | 50mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 170mm |
| Stack (Low BB) | 614mm | 613mm | 622mm | 632mm | 641mm | 650mm |
| Stack (High BB) | 610mm | 609mm | 618mm | 627mm | 636mm | 646mm |
| Reach (Low BB) | 410mm | 430mm | 450mm | 475mm | 500mm | 530mm |
| Reach (High BB) | 415mm | 435mm | 455mm | 480mm | 505mm | 535mm |
| Headtube Length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
| Headtube Angle (Low BB) | 65° | 65° | 65° | 65° | 65° | 65° |
| Headtube Angle (High BB) | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° | 65.5° |
| BB Height (Low BB) | 328mm | 333mm | 333mm | 333mm | 333mm | 333mm |
| BB Height (High BB) | 335mm | 340mm | 340mm | 340mm | 340mm | 340mm |
| BB Drop (Low BB) | 47mm | 42mm | 42mm | 42mm | 42mm | 42mm |
| BB Drop (High BB) | 40mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Trail (Low BB) | 126mm | 126mm | 126mm | 126mm | 126mm | 126mm |
| Trail (High BB) | 123mm | 123mm | 123mm | 123mm | 123mm | 123mm |
| Fork Length (full) | 550mm | 550mm | 550mm | 550mm | 550mm | 550mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 724mm | 746mm | 770mm | 800mm | 829mm | 863mm |
| Chainstay Length | 432mm | 432mm | 432mm | 432mm | 442mm | 442mm |
| Wheelbase | 1152mm | 1175mm | 1200mm | 1228mm | 1268mm | 1302mm |
| Top-tube Length (horizontal) | 563mm | 583mm | 605mm | 632mm | 660mm | 692mm |
| Bike Standover Height | 730mm | 734mm | 744mm | 749mm | 757mm | 757mm |
| Seat Tube Length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle (Low BB) | 76° | 76° | 76° | 76° | 76° | 76° |
| Seat Tube Angle (High BB) | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
| Max Seatpost Insertion | 220mm | 220mm | 240mm | 260mm | 280mm | 300mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
