Name: 2023 Specialized S-Works Crux Frameset
SKU: Crux-Frameset
Availability: InStock

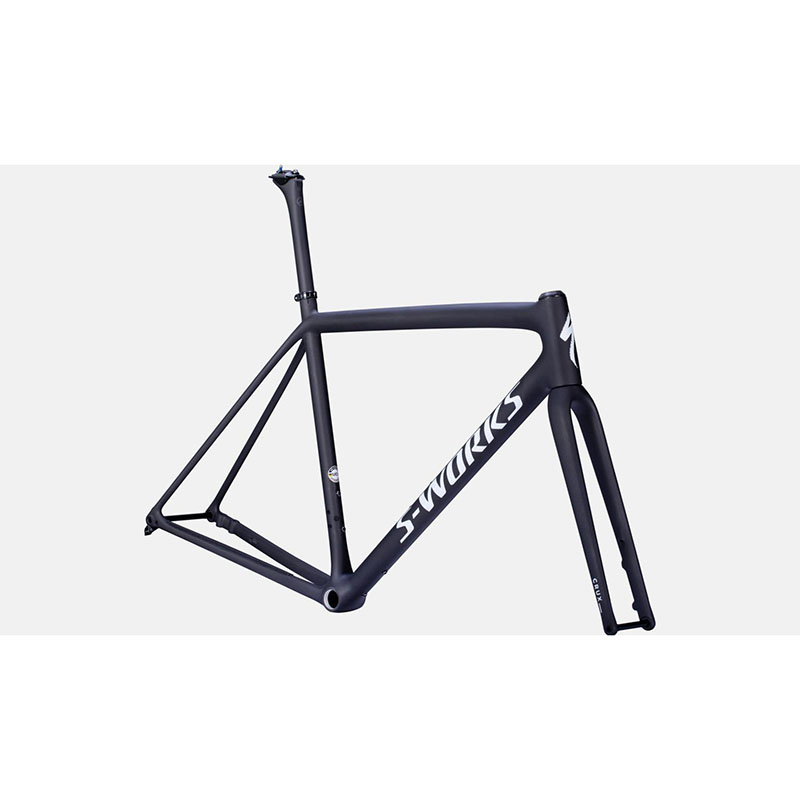

2023 Specialized S-Works Crux Frameset

In stock

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.

Buy it now

Technical Specifications

FRAMESET

Frame: S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc

FORK

Fork: S-Works FACT 12R Carbon, 12x100mm thru-axle, flat-mount disc

COCKPIT

SeatPost: Roval Alpinist Carbon Seatpost

Seat Binder: Specialized Alloy, 30.0mm, titanium bolt

Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Seatpost Length	300mm	300mm	300mm	360mm	360mm	360mm
Stack	530mm	547mm	560mm	578mm	598mm	621mm
Reach	375mm	382mm	388mm	397mm	405mm	415mm
Head Tube Length	100mm	115mm	130mm	147mm	167mm	190mm
Head Tube Angle	70.5°	71.25°	71.5°	72°	72.25°	72.5°
BB Height	284mm	284mm	286mm	286mm	286mm	286mm
BB Drop	74mm	74mm	72mm	72mm	72mm	72mm
Trail	74mm	69mm	67mm	64mm	62mm	60mm
Fork Length, Full	401mm	401mm	401mm	401mm	401mm	401mm
Fork Rake/Offset	50mm	50mm	50mm	50mm	50mm	50mm
Front Center	594mm	600mm	608mm	618mm	630mm	644mm
Chainstay Length	425mm	425mm	425mm	425mm	425mm	425mm
Wheelbase	1008mm	1014mm	1023mm	1033mm	1045mm	1059mm
Top Tube Length, Horizontal	512mm	539mm	549mm	568mm	582mm	599mm
Bike Standover Height	749mm	772mm	794mm	816mm	841mm	866mm
Seat Tube Length	466mm	496mm	521mm	546mm	576mm	606mm
Seat Tube Angle	75.5°	74°	74°	73.5°	73.5°	73.5°

Show More Show Less
