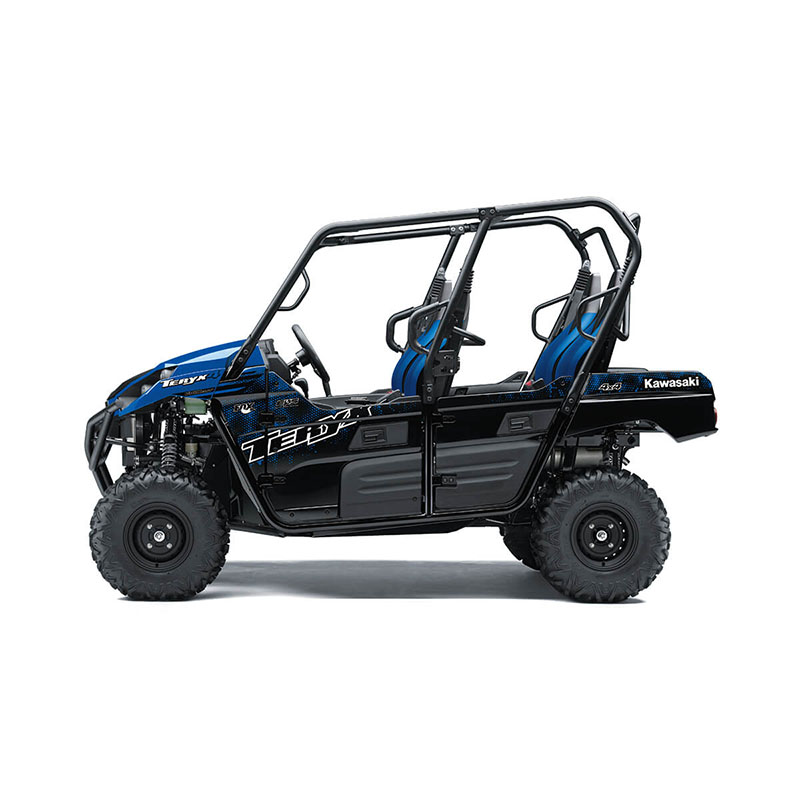

2020 Kawasaki Teryx4

POWER
Engine: 4-stroke, SOHC, 4-valve V-twin, liquid-cooled
Displacement: 783cc
Bore x Stroke: 85.0 x 69.0mm
Compression Ratio: 10.7:1
Maximum Torque: 47.0 lb-ft@ 5500 rpm
Fuel System: DFI® with two 36mm Mikuni throttle bodies
Ignition: TCBI with electronic advance
Starting: System Electric
Transmission: Automatic CVT with centrifugal clutch (H,L,N,R)
Final Drive: Selectable 2WD/4WD with locking front differential, shaft
Engine Braking: Yes

CAPABILITY
Front Suspension / Wheel Travel: Double Wishbone; Fox Podium coil-over shocks with piggyback reservoir, adjustable preload and 24-way compression damping/8.0 in.
Rear Suspension / Wheel Travel: Double Wishbone; Fox Podium coil-over shocks with piggyback reservoir, adjustable preload and 24-way compression damping/8.0 in.
Front Tires: Maxxis 26 x 9-12
Rear Tires: Maxxis 26 x 11-12
Steering: Electric Power Steering (EPS) / rack-and-pinion
Front Brakes: Dual hydraulic discs with two-piston calipers
Rear Brakes: Sealed, oil-bathed, multi-disc
Ground: Clearance 11.2 in
Fuel Capacity: 7.9 gal
Turning Radius: 16.7 ft
Cargo Bed Dimensions (LxWxH): 17.9 x 47.6 x 8.7 in
Cargo Bed Capacity: 249 lb
Payload Capacity: 1109 lb
Seating Capacity: 4
Towing Capacity: 1300 lb
Lighting: (2) incandescent headlights, (2) LED taillights, LED stoplight

DETAILS
Frame Steel Tube: Double-X Reinforcement
Overall Length: 125.4 in
Overall Width: 60.0 in
Overall Height: 77.8 in
Curb Weight: 1605.2 lb*
Wheelbase: 85.6 in
Instruments Multi-function digital meter with speedometer, fuel gauge, clock, hour meter, odometer, dual trip meter and parking-brake indicator, R/N/P/4WD, water temp and low-oil-pressure indicators
Wheel Type: Steel
Color Choices: Metallic Sierra Blue/Metallic Onyx Black
Warranty: Kawasaki Strong 3-Year Limited Warranty
Kawasaki Protection Plus™ (optional) 12, 24, or 36 months
